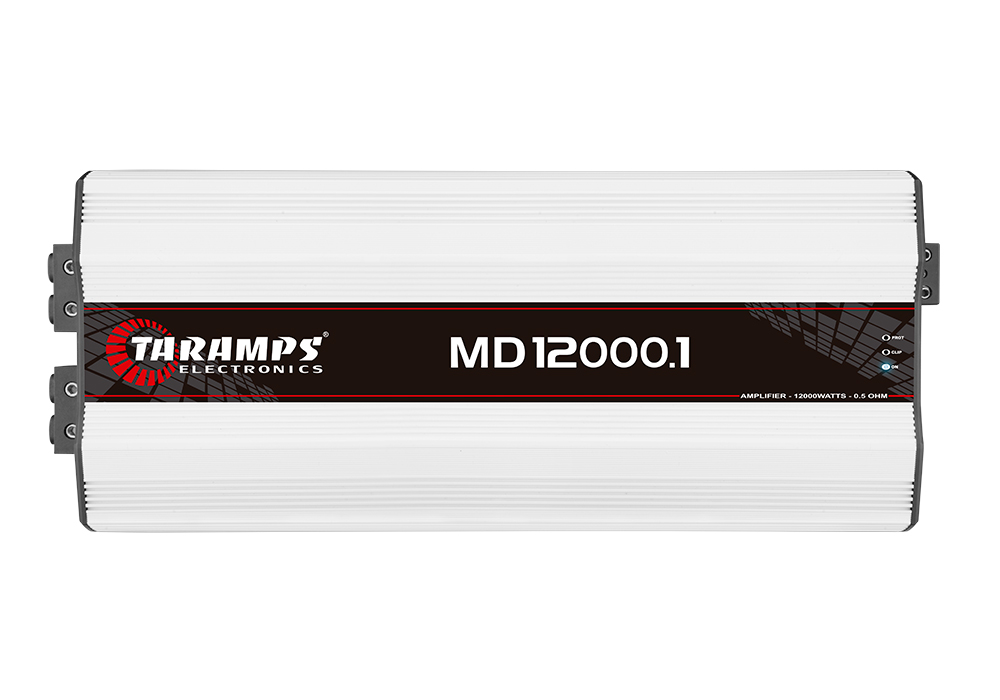

Taramps MD 12000.1 0,5 Ohm
1.400,00 €
The MD 12000.1 amplifier is carefully developed with state-of-the-art technology, offering unique efficiency and performance for automotive audio systems. Classified as Mono, it has a maximum power of 12.000 watts RMS, running at a 0.5-ohm impedance, with a single 12.000 watts RMS channel. This amplifier is FULL-RANGE, operating on all frequencies in the right measure.
The MD 12000.1 amplifier is carefully developed with state-of-the-art technology, offering unique efficiency and performance for automotive audio systems. Classified as Mono, it has a maximum power of 12.000 watts RMS, running at a 0.5-ohm impedance, with a single 12.000 watts RMS channel. This amplifier is FULL-RANGE, operating on all frequencies in the right measure.
| Operation class | Class D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12.6 VDC – 0.5 OHM: 12,000W RMS @ 12.6 VDC – 1 OHM: 7,200W RMS |
| Input Sensitivity | 220mV |
| Signal to Noise Ratio | >95dB |
| Frequency Response | 10 Hz ~5 kHz (-3dB) |
| Crossover high pass (HPF) | 10 Hz ~90 Hz (-12dB/8th) Variable |
| Crossover low pass (LPF) | 90 Hz ~5 kHz (-12dB/8th) Variable |
| Bass Boost | Freq.: 35 Hz ~55 Hz Boost: 0 ~10dB |
| Efficiency | 79% |
| Input Impedance | 15K ohms |
| Output Impedance | 0,5 ohm |
| Protection system | Output Short circuit, Output Short circuit in relation to the GND, Low Impedance Protection / High or Low voltage Protection / Thermal protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 3.6A |
| Maximum music consumption | 602.5A |
| Maximum consumption in sinusoidal signal | 1,205A |
| Dimensions (H x W x D) mm | 8.976 x 2.755 x 21.653 inches (228 x 70 x 550mm) |
| Weight | 17.526 lbs (7.95 kg) |
