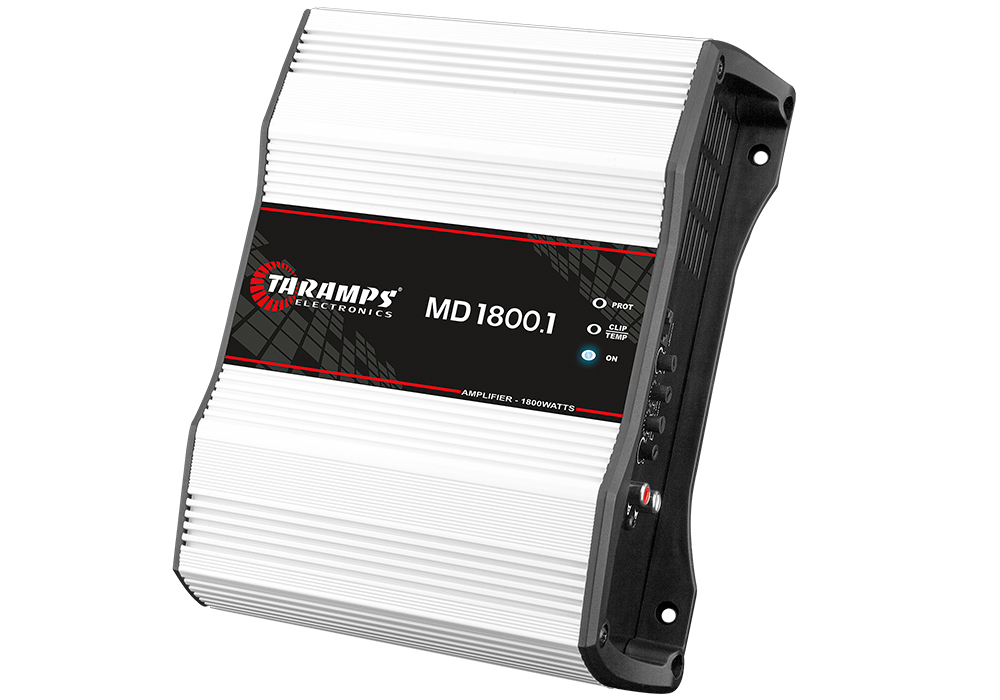

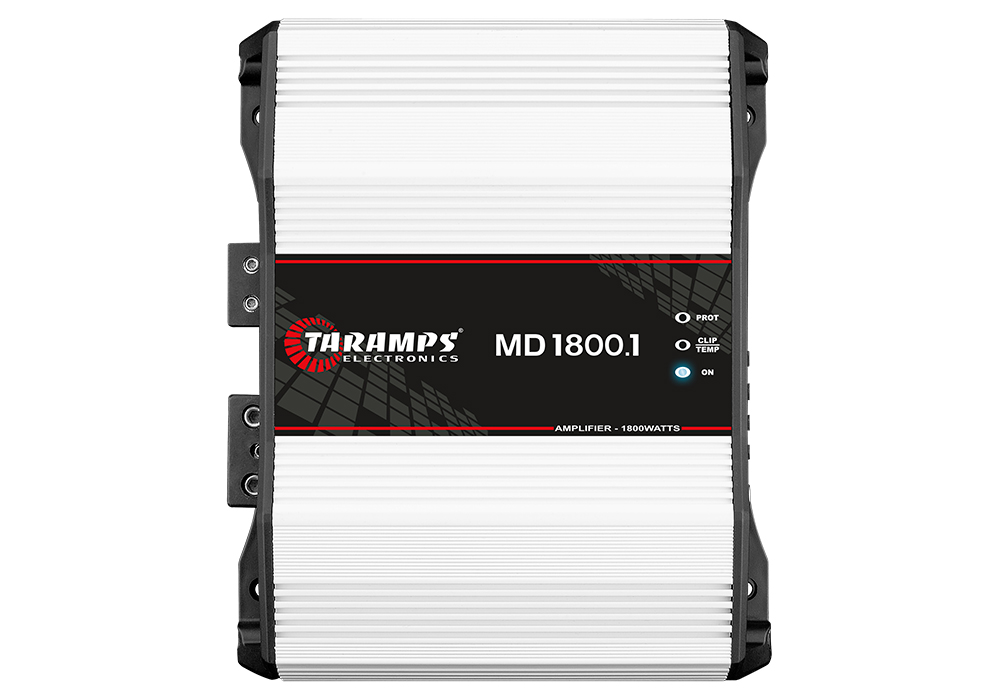

Taramps MD 1800.1 1OHM
300,00 €

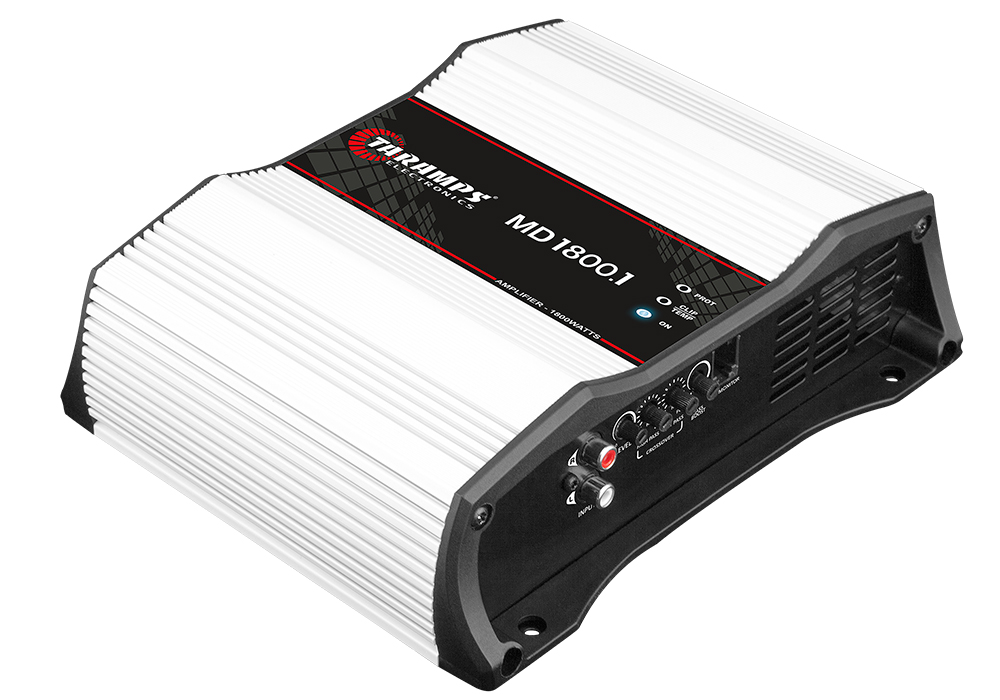

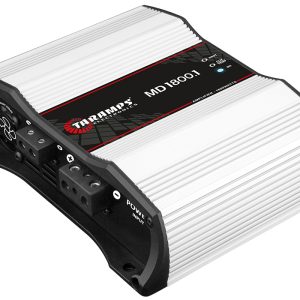

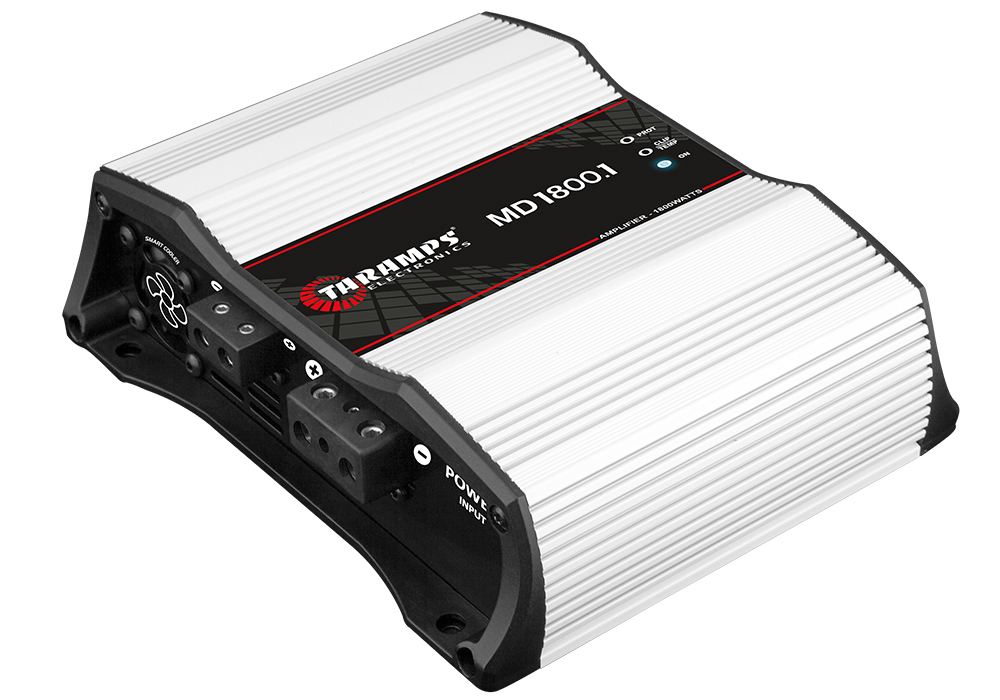

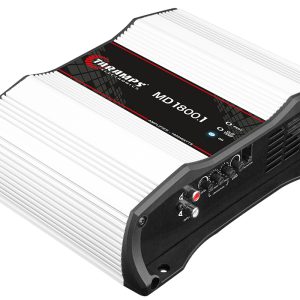

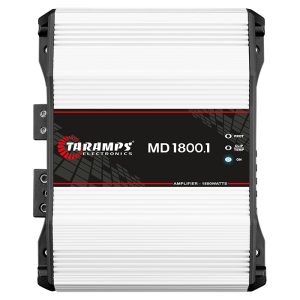

The MD 1800.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 1800W RMS with 1 OHM impedance, and one 1800W RMS channel. The MD 1800 is FULL RANGE this way you appreciate all the frequencies in the right measure.
| Operation class | Class D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12,6 VDC – 1 OHM: 1800W RMS @ 12,6 VDC – 2 OHMS: 1410W RMS |
| Input Sensitivity | 220 mV |
| Signal to Noise Ratio | >88dB |
| Frequency response | 10Hz ~ 20KHz (-3dB) |

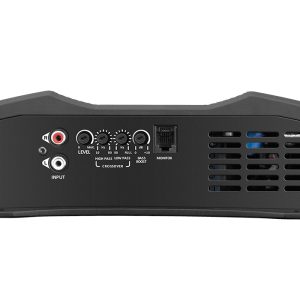

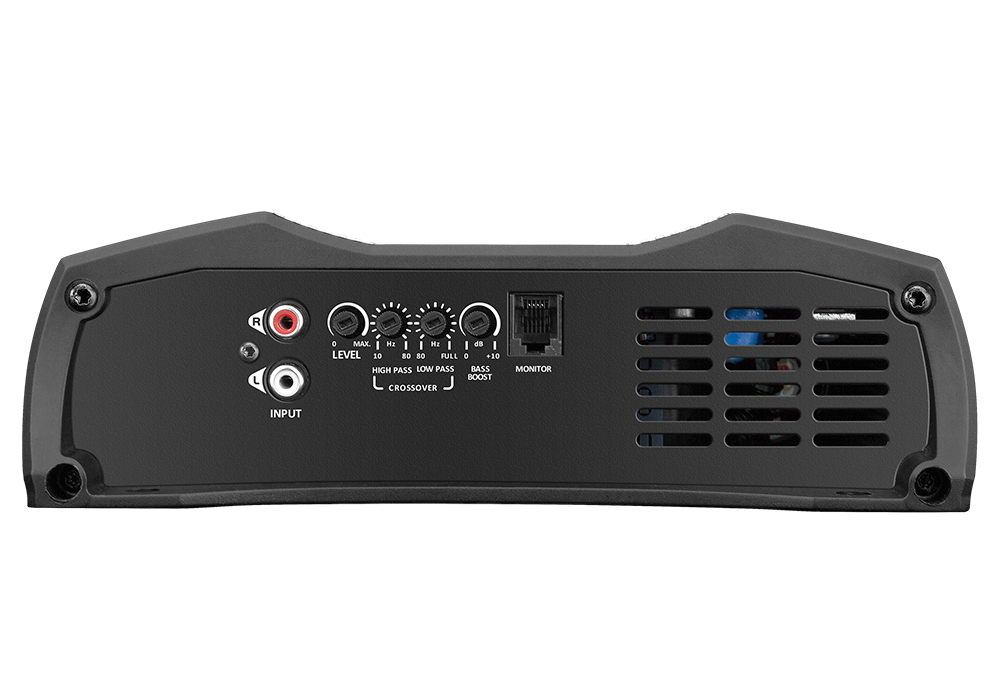

| Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 80Hz ~Full (-12dB/8ª) Variable |
| Bass Boost | 0 ~ 10.5dB (50Hz) |

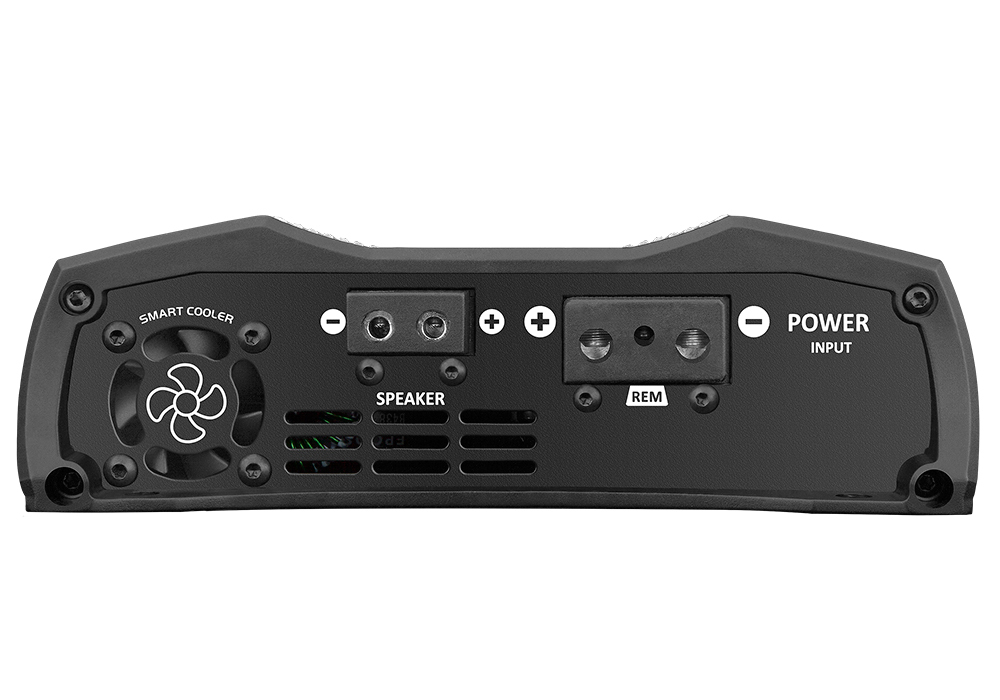

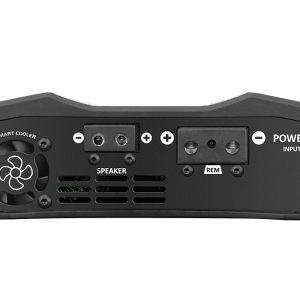

| Thermal Management | Smart Cooler (fan controlled by temperature or audio, with 3 speeds) |
| Efficiency | 78% |
| Input Impedance | 10k OHMS |
| Output Impedance | 1 OHM |
| Protection system | Output Short / High/Low Supply Voltage / Thermal Protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.7 A |
| Maximum music consumption | 91 A |
| Maximum consumption in sinusoidal signal | 182 A |
| Dimensions (H x W x D) mm | 228 x 70 x 188mm |
| Weight | 2.18Kg |
