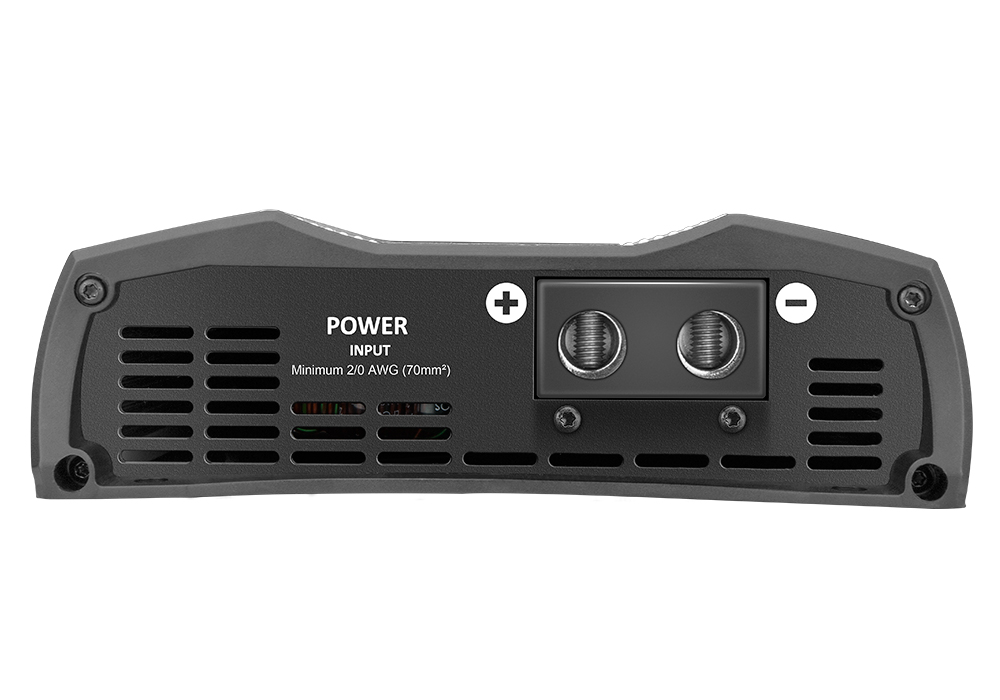

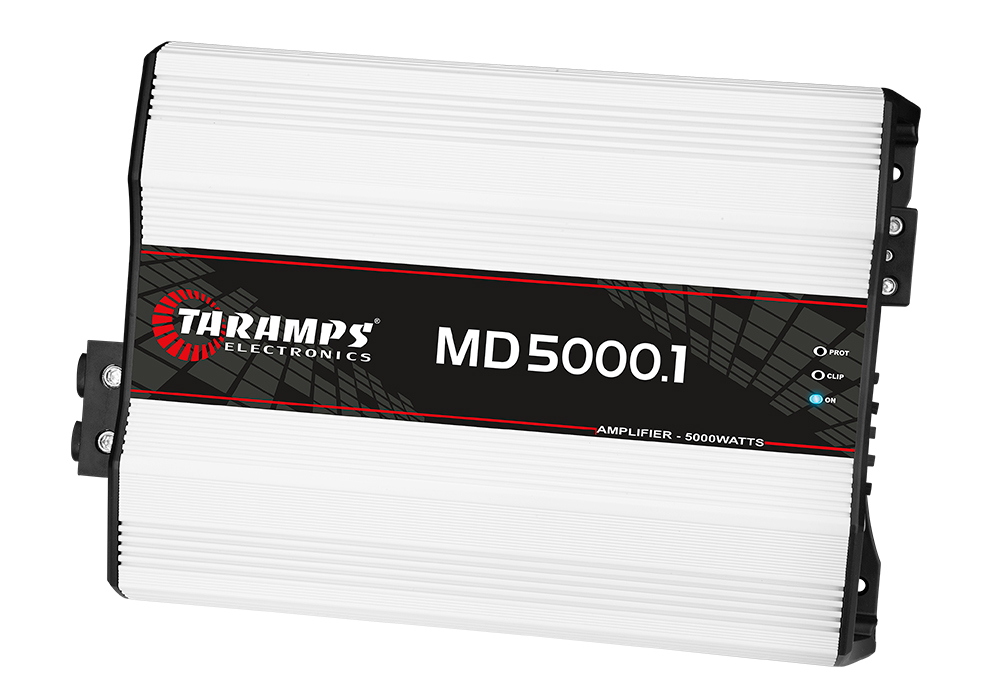

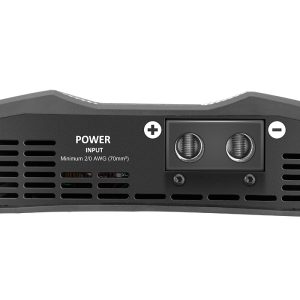

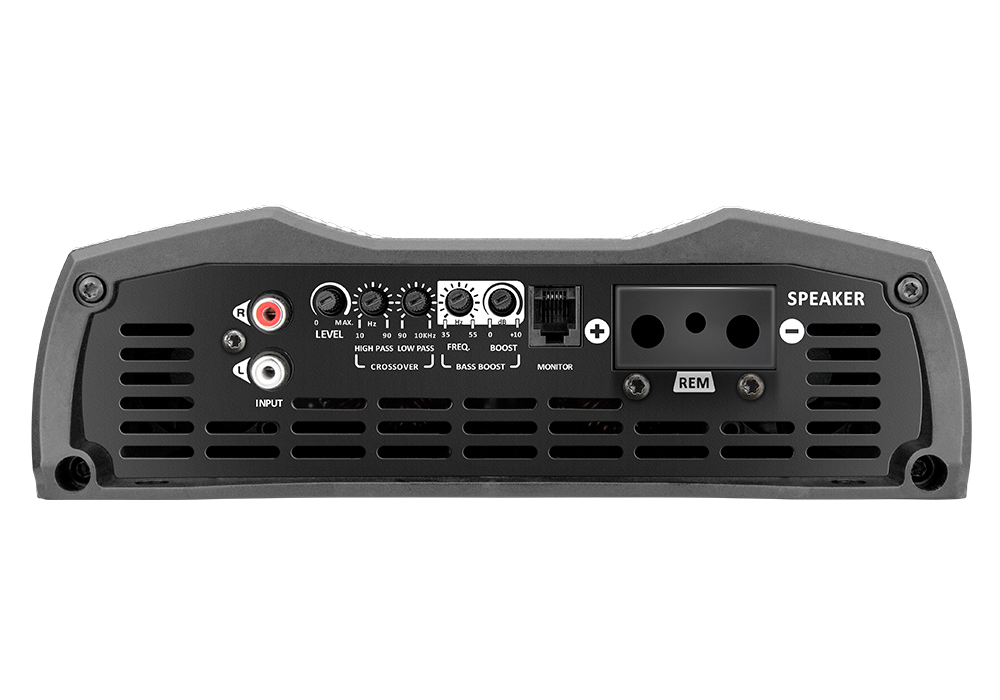

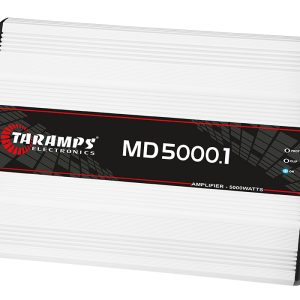

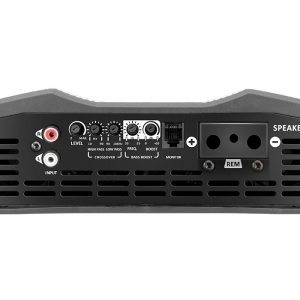

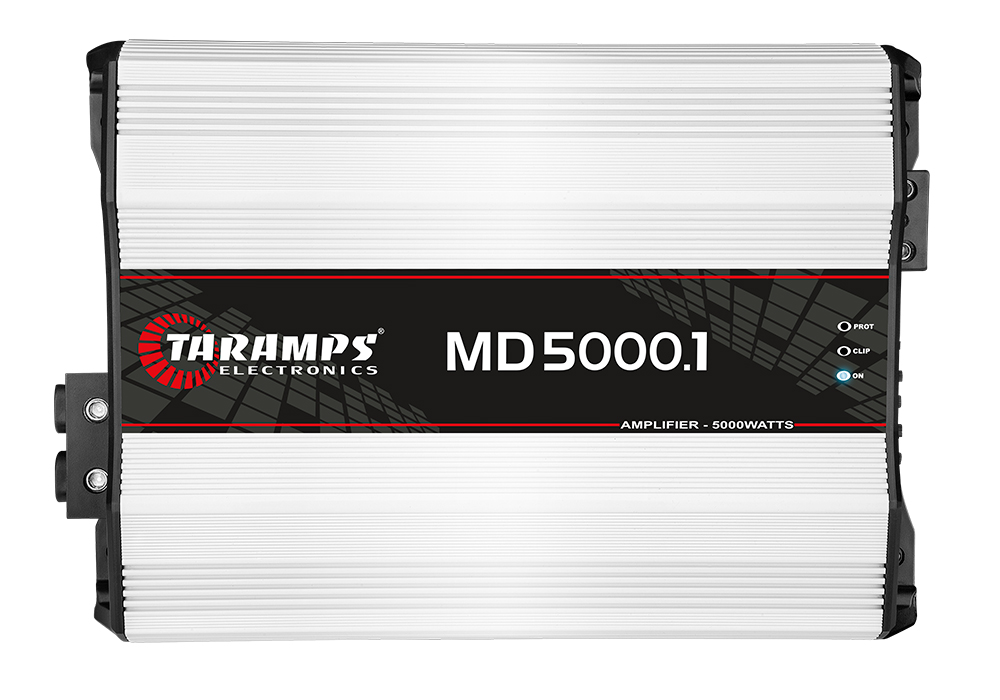

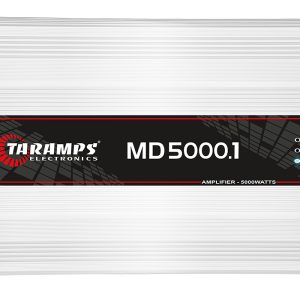

Amplifier Module 5000 watts RMS Classe D (1 channel 5000W RMS)
| Operation class | (PT) Classe D |
|---|---|
| Number of Channels | (PT) 01 |
| Maximum power | (PT) @ 12,6 VDC – 1 OHM: 5000W RMS @ 12,6 VDC – 2 OHMS: 3200W RMS |
| Input Sensitivity | (PT) 220 mV |
| Signal to Noise Ratio | (PT) >90dB |
| Frequency response | (PT) 10Hz ~ 10KHz (-3dB) |
| Crossover high pass (HPF) | (PT) 10Hz ~ 90Hz (-12dB/8ª) Variável |
| Crossover low pass (LPF) | (PT) 90Hz ~ 10KHz (-12dB/8ª) Variável |
| Bass Boost | (PT) 0 ~ 10dB (50Hz) Freq. Variável (35 ~ 55) |
| Efficiency | (PT) 81% |
| Input Impedance | (PT) 22K Ohms |
| Protection system | (PT) Curto na saída, Curto na saída em relação ao GND, Baixa impedância, Tensão de alimentação baixa e alta, Proteção Térmica. |
| Min. Supply Voltage | (PT) 9VDC |
| Maximum Power Supply Voltage | (PT) 16VDC |
| Consumption at rest | (PT) 1.20 A |
| Maximum music consumption | (PT) 244.5 A |
| Maximum consumption in sinusoidal signal | (PT) 489 A |
| Dimensions (H x W x D) mm | (PT) 228 x 70 x 327mm |
| Weight | (PT) 2.5Kg |
